詳細情報 |
|||
| 製品名: | トラックシュープレート | 材料: | 25MnBまたは25CrMnB |
|---|---|---|---|
| 色: | 黄色または顧客が設計した | サイズ（mm）: | 228M-19-610 |
| 部品番号: | SG228M-19-610 | 重さ: | 33.4 |
| リンクピッチ: | 228 | ||
| ハイライト: | MTW track shoe plate,PR764-688 track shoe,228-1M(19T)-610 wear part |
||
製品の説明

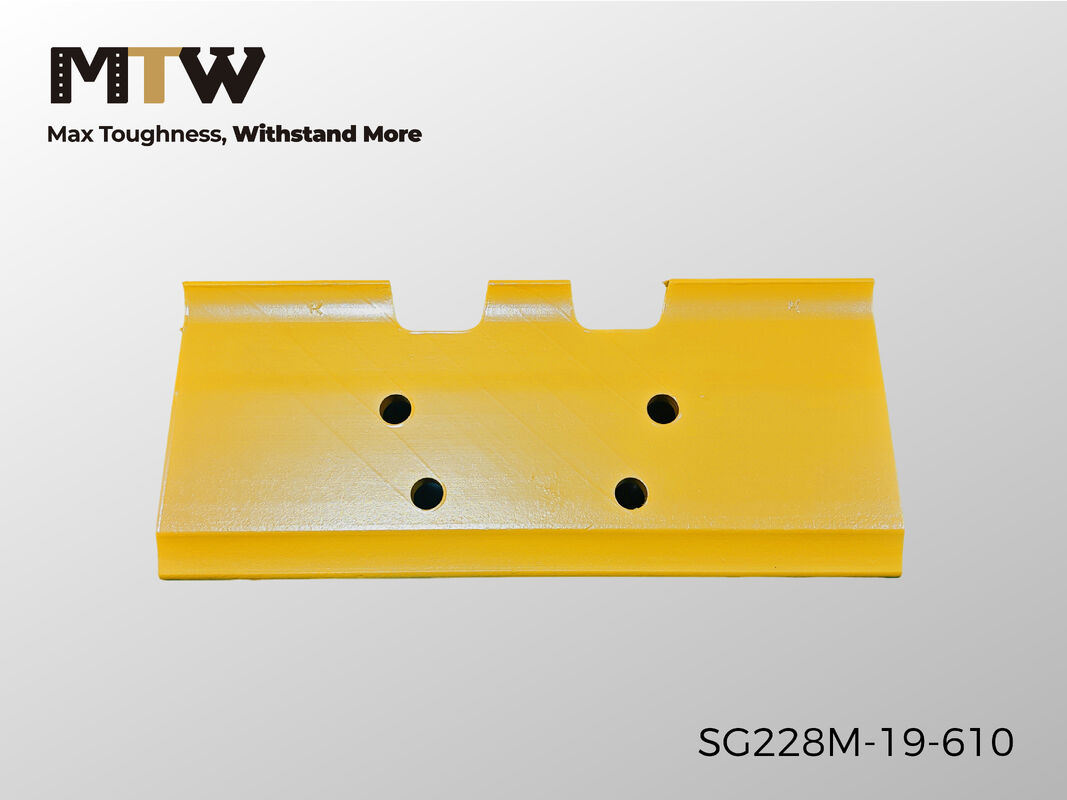

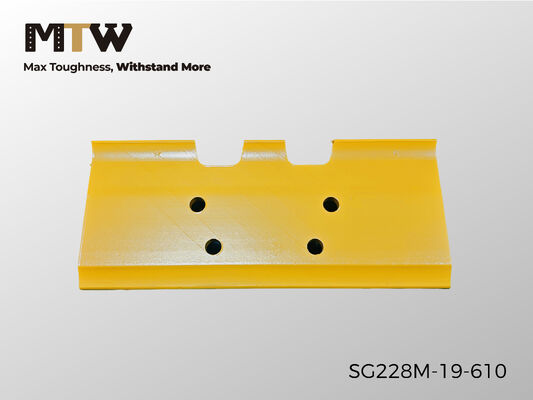

Track Shoe Plate
Description of 228-1M(19T)-610 Track Shoe Plate
Technology: Forging
Finish: Smooth
Hardness: HRC42-50
Heat treatment: Through harden
Dimensions: International Standard
| Part Number | Grousers Type | Thick Width Length(mm) | Link Pitch(mm) | Weight(kgs) |
| SG228M-19-610 | Single | 228M-19-610 | 228 | 33.4 |
Package and shipments
For parts not listed on above page, please send to sales@mtw-blades.com for more information
